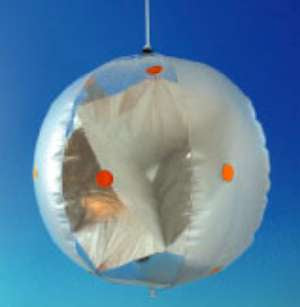

ECHOMAX EMA03i SOLAS INFLATABLE RADAR REFLECTOR, LIFERAFT 24″

The 18 inch octahedral array is built into a round inflatable radar reflector for easy deployment under extreme conditions.  The Echomax A03i Inflatable specifically designed for liferaft deployment, they can be safely vacuum sealed into a liferaft then those designed from rigid metal plates.

The A03i is built from 28 components interconnected with 17 ultrasonic welding operations inside a three piece airtight 24″ round PVC case, inflated orally or by pump.

NSN#: 5985-99-380-7258

Included on United States Coast Guard list of accepted radar reflectors

DOT#: QQ-TAN-04/3-01

SOLAS Approval

Suggested for: A liferaft

Dimensions:

Weight: 599gms (21 oz)

Packed: 230 x 305mm (9 x 12in)

Diameter inflated: 615mm (24.2 in)
